Low-End Design for Festival Sound Systems: How to Engineer Kick and Sub for Next-Generation PA Systems

Designing low-frequency systems for festivals is no longer just about delivering raw impact. It is about control, translation, scalability, and ensuring that tens of thousands of listeners experience consistent, physical low-end energy across unpredictable environments. As modern PA systems become more sophisticated and audience expectations continue to rise, the engineering of kick and sub frequencies has evolved into one of the most technically demanding aspects of large-scale sound reinforcement.

The low end is where emotion becomes physical. It is also where physics becomes unforgiving. In festival environments—often outdoors, often temporary—there are no room boundaries to lean on, no forgiving acoustics to mask mistakes. Every decision, from array topology to phase alignment, directly affects how the audience feels the music.

Psychoacoustics of Low Frequencies in Large-Scale Outdoor Environments

Low-frequency perception is fundamentally different from how we experience mid and high frequencies. Below roughly 100 Hz, the ear’s sensitivity decreases dramatically, requiring significantly higher sound pressure levels for perceived loudness to match midrange content. At festival scale, this becomes both a design opportunity and a challenge.

In large outdoor environments, the absence of reflective boundaries changes the way low frequencies develop. Indoors, room modes reinforce certain bands and create spatial variations. Outdoors, the low end behaves closer to a free-field condition. This means less natural reinforcement but also fewer modal peaks. The result is a cleaner, more predictable propagation pattern—if the system is engineered correctly.

However, psychoacoustic coupling still plays a crucial role. When thousands of bodies absorb high and mid frequencies, the spectral balance shifts. Low frequencies propagate with less attenuation over distance, often leading to a perceived increase in sub energy toward the rear of the audience area. Without careful system design, this can cause a disconnect between the physical punch near the stage and the more dominant sub presence further back.

Another factor is tactile perception. At high SPL, the body becomes a receptor. The chest resonance region—typically between 60 and 90 Hz—creates the sensation of punch associated with kick drums. Sub frequencies below 50 Hz produce a more enveloping, pressurized effect. Engineering the relationship between these bands is not just technical work; it is sculpting the emotional arc of the performance.

Subwoofer Array Topologies for Modern Festival PA Deployment

Modern festival deployments rely heavily on deliberate subwoofer array geometry rather than sheer quantity. Throwing more boxes at the problem is rarely the solution. The shape and placement of the array determine horizontal consistency, rear rejection, and low-frequency summation patterns across vast audience zones.

Traditional left-right ground stacks have largely given way to more sophisticated approaches. Centered mono sub arrays, often deployed as long horizontal lines across the stage front, have become common because they provide symmetrical coverage and eliminate the power alley phenomenon associated with separated stacks. The result is a more even distribution of low-frequency energy across the audience width.

Arc configurations and electronically steered arrays further refine horizontal directivity. By adjusting spacing and processing, engineers can control how the array couples at different frequencies, shaping the dispersion pattern to match audience geometry. For wide festival sites, this can mean the difference between tight, focused energy and uncontrolled lateral spill into noise-sensitive areas.

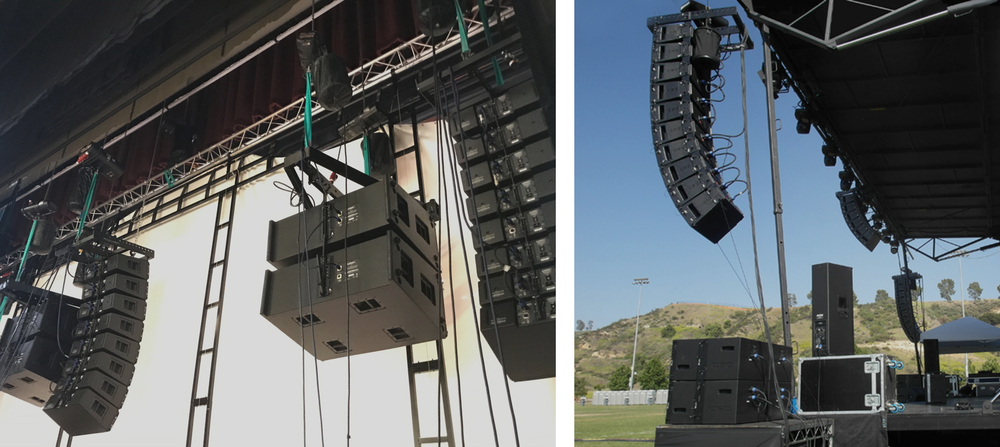

Flown subwoofers are increasingly integrated into hybrid systems, particularly for large main stages. While ground coupling offers efficiency benefits, flown subs allow better alignment with flown main arrays and can help smooth vertical coverage transitions. The trade-off involves reduced boundary reinforcement and increased rigging complexity. Choosing between ground-stacked, flown, or hybrid solutions is rarely aesthetic—it is a response to site constraints, noise regulations, and performance expectations.

Time Alignment, Phase Optimization, and Crossover Strategy Between Kick and Sub

The relationship between kick and sub systems defines clarity in the low end. Poor integration results in a blurred, indistinct bottom that feels loud but lacks impact. Proper alignment, on the other hand, delivers punch and depth simultaneously.

Time alignment begins with physical placement. The relative distance between subwoofers and main arrays introduces arrival time differences that must be corrected electronically. Even small offsets in the 60 to 100 Hz region can create destructive interference, weakening the very frequencies that drive rhythmic energy.

Phase optimization extends beyond simple delay compensation. The crossover region between kick bins and deeper sub frequencies requires careful filter selection. Steep filters may provide isolation but can introduce phase rotation. Shallower slopes preserve coherence but risk frequency overlap and muddiness. Engineers must evaluate magnitude and phase traces together, not in isolation.

The most successful festival systems treat kick and sub as a unified low-frequency engine rather than separate elements. This means verifying summation at multiple audience positions, not just at front-of-house. Walking the field, measuring at various depths, and confirming consistent phase interaction ensures that the punch translates from barricade to delay towers.

Cardioid, End-Fire, and Gradient Configurations for Low-End Directivity Control

Low-frequency directivity control is essential in festival environments, particularly where noise ordinances and neighboring communities impose strict limits. Containing energy behind the stage is as important as projecting it forward.

Cardioid subwoofer configurations use rear-facing elements and precise delay and polarity settings to achieve cancellation behind the array. This significantly reduces on-stage wash and backstage exposure while maintaining forward output. For artists and stage crews, this translates into cleaner monitoring conditions and reduced fatigue.

End-fire arrays take a different approach, using progressive delay across a line of subwoofers to create constructive interference in the forward direction and destructive interference to the rear. These arrays can provide tighter forward directivity, especially in the lower sub region, but require precise spacing and careful frequency-dependent optimization.

Gradient setups, often implemented in stacked configurations, balance forward summation with rear attenuation in a compact footprint. Each topology involves compromises in efficiency, bandwidth, and physical space. The art lies in selecting the configuration that best serves the site layout and regulatory constraints while preserving musical impact.

Managing Power Compression, Thermal Limits, and Headroom in High-SPL Applications

At festival scale, sustained high output exposes the physical limits of loudspeaker systems. Power compression occurs when voice coils heat up, increasing resistance and reducing acoustic output. The audible result is a gradual loss of low-end impact during long, high-energy performances.

Engineers must design systems with sufficient headroom to avoid operating near thermal thresholds. This includes specifying adequate amplifier capacity, ensuring proper ventilation, and distributing load across enough enclosures to minimize stress per unit.

Headroom is not merely about maximum SPL; it is about maintaining dynamic integrity. A kick drum transient should feel explosive even during peak program material. If the system is already near its limits, transients flatten, and the mix loses life. By maintaining conservative operating margins, engineers preserve clarity and longevity.

Power management strategies also include intelligent limiter settings. Overly aggressive limiting may protect hardware but compromise musicality. The balance lies in setting thresholds that prevent damage while allowing short-term peaks to breathe.

Measurement-Driven Low-End Tuning with SMAART, FFT Analysis, and System Prediction Software

Modern low-end design is inseparable from measurement. Tools such as SMAART and other FFT-based analyzers allow engineers to examine magnitude, phase, coherence, and impulse response in real time. These insights transform subjective impressions into actionable data.

Measurement begins with system prediction software during pre-production. Modeling array geometry, spacing, and site dimensions provides a theoretical baseline. Once deployed, on-site measurements verify or refine that prediction.

Dual-channel FFT analysis reveals phase relationships in the crossover region and identifies comb filtering caused by misalignment. Engineers can then adjust delay, polarity, and filter parameters to optimize summation. Importantly, measurements must be taken at multiple representative locations, not just a single reference point.

The goal is not to chase a perfectly flat response but to achieve controlled, intentional voicing. A festival system must translate across genres and performance styles. Measurement tools provide the clarity needed to make informed artistic decisions.

FAQ

One of the most common questions in festival system design concerns whether mono sub deployment is always preferable. In most large-scale outdoor scenarios, mono sub arrays provide greater consistency across audience areas. However, certain artistic or site-specific considerations may justify alternative approaches.

Another frequent concern involves the ideal crossover frequency between kick and sub systems. There is no universal number. The optimal point depends on enclosure design, driver capabilities, and musical style. What matters most is coherent summation and consistent energy distribution through the crossover region.

Engineers also ask how much rear rejection is truly necessary. The answer depends heavily on local regulations and stage design. In noise-sensitive areas, aggressive directivity control becomes essential. In more isolated environments, efficiency and forward impact may take priority.

Future-Proofing Festival Low-End Design for Immersive and Hybrid Sound Reinforcement Systems

As immersive and object-based sound systems enter the festival space, low-frequency design must adapt. While sub frequencies remain largely omnidirectional compared to higher bands, their integration with spatial audio workflows introduces new considerations.

Hybrid reinforcement systems combining traditional line arrays with spatial processing engines require stable, predictable low-frequency foundations. Sub arrays must deliver uniform coverage that supports moving objects and dynamic panning without creating localization artifacts.

Future-proofing involves modularity and scalability. Systems should be designed so that additional arrays, delay towers, or immersive elements can be integrated without reengineering the entire low-frequency infrastructure. Data-driven workflows, networked amplification, and advanced prediction tools will increasingly define professional practice.

Ultimately, the core principle remains unchanged. The low end must feel powerful yet controlled, immersive yet precise. In the evolving landscape of festival sound, engineering kick and sub frequencies is both a technical discipline and a craft—one that shapes how audiences experience music at its most physical level.
